File:BE-TS Hydraulic Schematic Extended Reach.png

From Battery Handling Systems
Revision as of 13:33, 13 March 2024 by Kperrier (talk | contribs)
(diff) ← Older revision | Latest revision (diff) | Newer revision → (diff)
Jump to navigation Jump to search

Original file ‎(686 × 913 pixels, file size: 179 KB, MIME type: image/png)

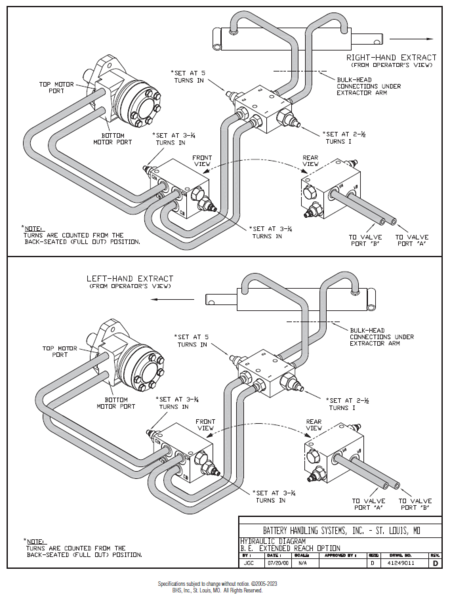

BE-TS Hydraulic Schematic Extended Reach

File history

Click on a date/time to view the file as it appeared at that time.

Date/TimeThumbnailDimensionsUserComment
current13:33, 13 March 2024Thumbnail for version as of 13:33, 13 March 2024686 × 913 (179 KB)Kperrier (talk | contribs)

You cannot overwrite this file.

Metadata

This file contains additional information, probably added from the digital camera or scanner used to create or digitize it.

If the file has been modified from its original state, some details may not fully reflect the modified file.

Retrieved from "https://tech.bhs1.com/index.php?title=File:BE-TS_Hydraulic_Schematic_Extended_Reach.png&oldid=7636"
