IOP-407 BE-TSN

TP-606 - SAFETY AND DE-ENERGIZATION PROCEDURES

Register your equipment with BHS Optima, BHS's free app.

GENERAL SAFETY

Read and understand all instructions and warnings before using or servicing this equipment.

Keep these instructions for future reference.

Battery Extractor (BE) units shall only be operated by suitable persons of at least 18 years of age, who have been trained in the proper and safe operation of the BE and expressly certiﬁed/charged, in writing, by the user or their representative.

Only one person is permitted to travel on the BE at any time.

BE units shall only be used indoors in an industrial setting on a hard, nonslip, and level ﬂoor without defects including but not limited to holes, gouges, cracks, drains or obstacles comprised of concrete or other suitable industrial material meeting the minimum requirements speciﬁed by BHS as well as any local requirements.

A licensed structural engineer should be consulted prior to installing a BE on any building level other than the ground ﬂoor.

BE units are not designed to be shipped or transported after initial delivery.

WORK AREA

Keep work area clean and well lit. Cluttered work areas and poor lighting can lead to accidents.
Clean up/contain any ﬂuid spills immediately to prevent slips or falls.
Be aware of potential hazards when performing any service or maintenance to the unit.

SERVICE & MAINTENANCE

Service personnel shall wear Personal Protective Equipment (PPE) appropriate for the task being performed.

LOCKOUT/TAGOUT

Lockout/tagout the BE per your corporate policy, if damaged or not functioning properly. Lockout/tagout and de-energize all systems prior to performing any maintenance or service to unit.

LEAD-ACID BATTERIES-EXPLOSION HAZARD

Do not allow open ﬂames or sparks of any kind near a battery. Highly explosive gas is generated when charging a battery that can remain in battery cells for extended periods of time after charging is complete.

Always wear appropriate PPE including rubber apron, gloves, boots and full face shield when performing service or maintenance to any lead-acid batteries.

Do not place metal or other conductive objects on top of battery. Arcing may occur causing damage to the battery and/or serious personal injury or death.

Use only chargers matching the voltage and amperage of the battery being charged. Overcharging a battery can cause damage to the battery, charger and/or serious personal injury or death.

Turn off charger before disconnecting battery from charger. Arcing between battery and charger connectors can cause damage to the connectors and/or serious personal injury or death.

HYDRAULIC HAZARDS

AVOID HIGH PRESSURE FLUIDS-Escaping ﬂuid under pressure can penetrate the skin causing serious injury. Relieve pressure before disconnecting hydraulic lines. Tighten all connections before applying pressure. Keep hands and body away from pin holes which eject ﬂuids under high pressure. Use a piece of cardboard or paper to search for leaks. DO NOT use your hand.

Any ﬂuid injected into the skin under high pressure should be considered a serious medical emergency despite an initial normal appearance of the skin. There will be a delayed onset of pain, and serious tissue damage may occur. Medical attention should be sought immediately.

OPERATIONAL SAFETY

Only personnel trained in the proper and safe operation of BE units may operate or service the BE.

Operators shall wear appropriate PPE suitable for working with industrial lead-acid batteries while operating the BE (see prior page).

All data plates, warning labels, placards, etc shall be in place and legible at all times. Contact BHS for replacement data plates, warning labels, placards or instructions.

All users and service personnel shall be familiar with the meaning and risks associated with all data plates, warning labels, etc.

All operators and service personnel shall be aware of potential crush and shear points while operating or servicing the BE.

Keep hands and arms out of the battery compartment while operating the BE.

Remove BE from service if damaged, defective, or operating improperly (or becomes such while operating) until repairs can be made to correct any problem(s).

All operators shall be aware of the location of the end stops in the travel path to prevent driving the BE into the end stops.

DO’s AND DON’T’s

DO NOT exceed the maximum capacity of the BE.

DO NOT modify or ﬁt the BE with attachments without prior, written approval from BHS.

DO NOT perform any maintenance or service to the BE with a battery loaded on the BE.

DO NOT allow anyone to ride in or on the BE.

DO NOT operate the BE with any guard or cover removed unless required for maintenance or repair.

Disconnect the BE from all power sources before attempting to perform service or maintenance to the unit.

DO NOT drive the BE into the end stops.

DO NOT operate the BE if disengaged from the guidance track.

DO NOT allow a battery to exit the BE when a lift truck or battery stand is not present to accept the battery.

DO NOT rotate the arm onto a battery such that any part of the extractor arm, vacuum cup or magnet contacts the top of the battery.

DO NOT allow anyone to enter the area under the carriage without the service stands properly installed.

DO NOT use the BE in a manner for which it is not intended. Some examples of prohibited use are but not limited to:

           >>To transport people
           >>As a vehicle jack
           >>To lift loads greater than its rated load capacity
           >>Where unintentional movement may exist
           >>Having direct contact with foodstuff
           >>In a potentially explosive atmosphere

DE-ENERGIZATION

Fully lower the BE roller bed or position the roller bed on service stands if service requires the bed be raised. See Figures 1 & 2

Failure to properly support the roller bed when performing service under the BE could result in injury from the roller bed lowering unexpectedly.

FIGURE 1

FIGURE 2

Turn key on dashboard to the “OFF” position. See Figure 3.

FIGURE 3

Disconnect power to the extractor or shut off the electrical branch circuit breaker.

Failure to disconnect electrical power to the BE could result in electrical shock. Serious personal injury or death will occur.

Actuate all hydraulic levers in both directions to release any stored hydraulic pressure. See Figure 4.

Failure to release any stored hydraulic pressure could result in injury from:

Escaping hydraulic ﬂuid under high pressure (see HYDRAULIC HAZARDS in the GENERAL SAFETY section).

Unexpected movement of hydraulic components.

FIGURE 4

LABELS & PLACARDS

GENERAL INFORMATION

SPECIFICATION DATA

Product Specifications - Imperial / Metric	BE-24-2-SLN	BE-36-2-SLN	BE-24-2-DSN	BE-36-2-DSN	BE-24-2-TSN	BE-36-2-TSN
Travel Speed	0-190 FPM / 0-1 mps		0-190 FPM / 0-1 mps		0-190 FPM / 0-1 mps
Raise - Lower Speed	0-10 FPM / 0 -.05 mps		0-16 FPM / 0-.08 mps		0-26 FPM / 0-.13 mps
Powered Roller Speed	0-37 FPM / 0-.18 mps		0-37 FPM / 0-.18 mps		0-37 FPM / 0-.18 mps
Arm Traverse Speed	0-20 FPM / 0-.10 mps		0-20 FPM / 0-.10 mps		0-20 FPM / 0-.10 mps
Arm Rotation Time	6 - 8 Seconds		6 - 8 Seconds		6 - 8 Seconds
Draw Bar Pull Vacuum (12” Round Cup)	1,000 lbs / 450 kg		1,000 lbs / 450 kg		1,000 lbs / 450 kg
Vacuum Attach Time / Release Time	< 1 sec / < 1 sec		< 1 sec / < 1 sec		< 1 sec / < 1 sec
Input Voltage	240/480 VAC/60Hz		240/480 VAC/60Hz		240/480 VAC/60Hz
AC Current Draw	13.6 / 6.8 Amps		13.6 / 6.8 Amps		27.2 / 13.6 Amps
Control Circuit Voltage	120 VAC		120 VAC		120 VAC
Hydraulic Power Unit	5 HP / 3.73 KW		5 HP / 3.73 KW		10 HP / 7.46 KW
Hydraulic Pump	8 GPM / 30 LPM		8 GPM / 30 LPM		16 GPM / 60 LPM
Power Unit	Hydraulic, Variable Displacement		Hydraulic, Variable Displacement		Hydraulic, Variable Displacement
Operating Pressure	1,500 PSI / 103 Bar		1,500 PSI / 103 Bar		1,500 PSI / 103 Bar
Vacuum Pump	1/3 HP / .25 KW		1/3 HP / .25 KW		1/3 HP / .25 KW
Vacuum	21” Hg / 0.73 kg/cm2		21” Hg / 0.73 kg/cm2		21” Hg / 0.73 kg/cm2
Full Load Capacity	10,000 lbs / 4535 kg		10,000 lbs / 4535 kg		10,000 lbs / 4535 kg
Weight (Empty)	5,300 lbs / 2404 kg	5,700 lbs / 2585 kg	5,500 lbs / 2495 kg	6,100 lbs / 2767 kg	7,500 lbs / 3402 kg	7,800 lbs / 3538 kg
Total Compartment Rollers / Powered	11/5		11/5		11/5
Guide Track	2” x 2.5” Angle / 51 mm x 64 mm		2” x 2.5” Angle / 51 mm x 64 mm		3” x 2.5” Angle / 76 mm x 64 mm
Overall Dimensions (L x W x H)	130” x 67” x 65” / 3302 mm x 1702 mm x 1651 mm	154” x 67” x 65” / 3912 mm x 1702 mm x 1651 mm	128” x 67” x 90” / 3252 mm x 1829 mm x 2286 mm	152” x 67” x 90” / 3861 mm x 1702 mm x 2286 mm	156 .5” x 67” x 158.06” / 3975 mm x 1702 mm x 4015 mm	180.5” x 67” x 158.06” / 4585 mm x 1702 mm x 4015 mm
Vacuum Arm Reach (Stand Side)	9” / 229 mm		9” / 229 mm		9” / 229 mm
Vacuum Arm Reach (Hydraulic Extension)	5” - 17” / 127 mm - 432 mm		5” - 17” / 127 mm - 432 mm		5” - 17” / 127 mm - 432 mm
Wheel Base	95.75” / 2432 mm	119.75” / 3042 mm	95.75” / 2432 mm	119.75” / 3042 mm	98” / 2489 mm	122” / 3099 mm
Drive Wheel Centerline	48” / 1219 mm		48” / 1219 mm		48” / 1219 mm
Battery Compartment Width	24” / 610 mm	36” / 915 mm	24” / 610 mm	36” / 915 mm	24” / 610 mm	36” / 915 mm
Maximum Battery Dimensions (L x W x H)	48” x 23” x 36” / 1220 mm x 580 mm x 910 mm	48” x 35” x 36” / 1220 mm x 890 mm x 910 mm	48” x 23” x 36” / 1220 mm x 580 mm x 910 mm	48” x 35” x 36” / 1220 mm x 890 mm x 910 mm	48” x 23” x 36” 1220 mm x 580 mm x 910 mm	48” x 35” x 36” / 1220 mm x 890 mm x 910 mm
Minimum Battery Width	12” / 305 mm		12” / 305 mm		12” / 305 mm
Minimum Battery Height	17.75” / 450 mm		17.75” / 450 mm		17.75” / 450 mm
Ground Clearance	.625” / 15 mm		.625” / 15 mm		.625” / 15 mm
Roller Height	6.5” Min - 26.5” Max 165 mm Min - 670 mm Max		6.5” Min - 56” Max 165 mm Min - 1420 mm Max		6.5” Min - 96” Max 165 mm Min - 2435 mm Max

Note: Speciﬁcations may vary +/- 5% due to temperature, ﬂoor considerations and operator efﬁciency. Values represented under normal operating conditions.

PRE-INSTALLATION CHECK

FLOOR CONDITIONS

The ﬂoor is the single most critical area of the battery room. A bad ﬂoor can cause signiﬁcant issues with the installation as well as downtime and maintenance problems with the extractor. The ﬂoor should be veriﬁed as to its minimum thickness and strength with user. As noted on the drawing, the speciﬁc requirement of ﬂatness for your particular type of system is listed. Below is a chart stating ﬂoor requirements. If possible, especially on double stack and higher systems, a digital level should be used to shoot the grade for compliance with the speciﬁcation. The ﬂoor should also be inspected for severe cracks or excessively wide expansion joints in the travel path of the machine. If ﬂoor drains are present, they must not have a grade to the opening that encroaches into the travel path.

F-min is a rating method used to evaluate the ﬂatness and levelness of a ﬂoor designated as “deﬁned travel path”. For example, an F-min rating of 60 means that there is no more than .129” of variation in the transverse axis (wheels left to right) and .287” variation in the longitudinal axis (front to back) on the equipment.

To avoid potential damage to drive wheel assemblies, guide track, structural components, guide rollers and issues with the inner frame equalization the “deﬁned travel path” of the Battery Extractor should meet or exceed the recommended F-min speciﬁcation. See chart below for the model speciﬁcations

Model	F-Min	+/- Longitudinal	+/- Transverse	Slope Defect
SL, DS	40	.287”	.192”	.096”
TS	60	.186”	.129”	.066”
QS	85	.131”	.091”	.047”

OPERATING CONTROLS

OPERATOR CONSOLE

OPERATION OVERVIEW

All operators should be familiar with the operator console of the extractor before performing any battery changes. The controls of the console are simple and well marked. It consists of six, manually operated, hydraulic control valves and a three position selector switch which controls the left and right vacuum cups.
All manual valves are moved in the direction of the function travel which it controls with exception of the lift/ lower valve, which is pulled toward the operator for “up” and pushed away for “down.”
The extractor arm must be in the center of the carriage or the unit will not travel forward or reverse.
To ensure smooth operation, all valve movements should be made in a slow, deliberate motion.

OPERATING INSTRUCTIONS

PRE-CHANGE OUT PREPARATION

Position the lift truck for change out in the designated change out area.
Remove all battery restraints and disconnect the battery cables following the manufacturer's guidelines. (Be sure to position the battery cables so as not to be damaged by the battery during change out.)
Board the battery extractor and close the safety gate. (The gate must be fully closed or the unit will not operate.)
Depress the foot pedal.
Turn the key switch to the “ON” position.

DISCHARGED BATTERY REMOVAL

Move the extractor left or right to position the center of compartment with the center of the lift truck battery compartment. (Lead roller of extractor is equipped with a centering groove. Users may ﬁnd it beneﬁcial to mark center of lift truck compartment to aid in alignment.)
Align the extractor’s roller compartment height with the lift truck’s battery compartment.
Rotate extractor arm into battery compartment aligned in Step 2.
Move the extractor arm toward the battery until the vacuum cup/magnet contacts the battery.

DO NOT force cup to battery after initial contact with battery is made.

Energize vacuum by turning selector switch to proper direction, left or right.
Move extractor arm away from lift truck toward center of extractor roller bed, removing discharged battery. (Battery should be pulled past ﬁrst three idler rollers onto ﬁrst or second powered roller.)
Turn off vacuum and move extractor arm away from battery 1” to 2”.
Rotate extractor arm out of battery compartment into opposite compartment (if empty) and center arm in carriage.
Move battery into center of compartment using powered rollers.

CHARGED BATTERY RETRIEVAL

Locate a charged battery for the appropriate type of lift truck being changed.
Raise battery extractor roller compartment to proper level to gain access as needed to disconnect desired battery from its charger and disengage battery safety stop.

ALWAYS be sure charging has been completed and the charger is not still charging the battery. Dangerous sparking/arcing can occur if the battery is unplugged from the charger while charging.

Move extractor to appropriate rack position and align empty roller compartment with the center of the battery storage rack compartment. (The battery safety stop of each compartment is the center of that compartment and should be used for alignment with the groove in the lead roller of the battery extractor compartment.)
Rotate arm into empty compartment (if not already positioned there.)
Move extractor arm toward battery until vacuum cup contacts battery.
Energize vacuum cup by turning selector switch to proper direction, left or right.

DO NOT force cup to battery after initial contact with battery is made.

Move extractor arm away from battery rack toward center of extractor roller bed, removing charged battery. (Battery should be pulled past ﬁrst three idler rollers onto ﬁrst or second powered roller.)
Turn off vacuum and move extractor arm away from battery 1” to 2”.
Rotate extractor arm out of battery compartment into fully vertical position.
Move battery into center of compartment using powered rollers.

DISCHARGED BATTERY RETURN

If required, adjust extractor compartment height to battery rack level with open battery compartment. Drive extractor to align roller compartment containing discharged battery with open battery compartment.
Return discharged battery to battery rack using powered rollers.

In most instances, batteries can be deposited into battery racks in one motion using only powered rollers. When this does not work, the battery may need slight assistance from extractor arm. To do this, rotate arm into compartment such as one would if removing battery from rack. If extractor is vacuum equipped, position top edge of cup slightly higher than edge of battery (or over lifting eye if so equipped) to prevent cup from adhering to battery - No vacuum is necessary for pushing. DO NOT activate vacuum switch. Slowly push battery into rack until fully into compartment.

Engage the battery safety stop and connect the battery to the charger as required.

CHARGED BATTERY INSTALLATION

Lower extractor to fully lowered position.
Drive the extractor back to the lift truck and align the roller compartment containing the charged battery as performed in steps 1 and 2 of ”Discharged Battery Removal”.
Move the charged battery toward the lift truck compartment by moving the extractor arm out, verifying precise battery alignment.

Many batteries are a tight ﬁt into the lift truck battery compartments. Care MUST be taken to ensure alignment is precise to avoid damage to the battery, lift truck, and/or battery extractor.

Adjust the extractor vertically as well as horizontally, if needed.
Insert battery into lift truck as far as possible using only the powered rollers.
Rotate extractor arm into compartment and SLOWLY push battery into lift truck. (Be sure to watch battery cables for interference.)
Return extractor arm to center of roller bed and lower extractor to fully lowered position. Drive extractor out of immediate area.
Turn off key switch, remove key from switch and carefully exit extractor.
Secure newly installed battery in lift truck and reconnect battery cables.
Return lift truck to service.

DO NOT drive the B.E. into the travel path end stops. The end stops are designed to prevent the B.E. from accidentally traveling beyond its designated travel path. Driving the B.E. into the end stops will cause the B.E. to stop suddenly, possibly causing damage to the end stop, the B.E. and/or personal injury.

MANUAL UNLOADING

Lockout/tagout and de-energize all equipment prior to manually unloading any battery.

In the event of power loss or an operational malfunction of the BE not allowing a battery to be unloaded using normal operating procedures, it is recommended a battery be removed from the BE using certiﬁed and approved vertical extraction methods and devices.

Read, understand and observe all safety warnings and procedures related to the vertical extraction device(s) being used.

Should the status of the BE not allow for safe vertical extraction due to position in the battery aisle, only repairs required to safely maneuver the BE to a position allowing for safe vertical extraction should be made. Once any batteries are safely unloaded, any remaining repairs can be made.

Extreme care should be taken when working under or around equipment supporting elevated loads. Unexpected movement of the equipment could cause the load and/or equipment to fall. ALWAYS be sure devices of adequate size and strength are in place to prevent any personnel working under the elevated load from being crushed. Serious personal injury or death will occur.

RECOMMENDED SPARE PARTS

Refer to the Spare Parts Kit (Pt# BE-SPKV-TS) at the beginning of Section 7 for the list of items recommended by the factory to have on hand for BE-TSN models to minimize any downtime due to minor breakdown that may occur under normal operating conditions.

Use only BHS approved replacement parts.

BHS recommends that a full maintenance inspection report similar to the one provided be done at least once a month.

Any parts found to be excessively worn or damaged should promptly be replaced unless said parts pose a safety risk to the operator and/or extractor, in which case the unit should be removed from service until the problem(s) are remedied (See Operator’s Daily Checklist.)

PARTS SECTIONS

CHASSIS

EQUALIZTION

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	PT0222	LINK-CONNECTING-#60			8
2	HW0017	NUT-HEX-3/4-10			8
3	HW0115	WASHER-LOCK-3/4			4
4	43097001	STUD-ANCHOR-5”		UPPER	4
5	HW0020	NUT-JAM-3/4-10			4
6	43097002	STUD-ANCHOR-2”		LOWER	4
7	00158001-40	CHAIN-ROLLER-#60			4

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	PT0416	COLLAR-SHAFT-1 1/2”			4
2	43097006	KEY-3/8” X 2 3/4”			4
3	PT0224	SPROCKET-60B12 X 1 1/2”		KEYED INLINE	8
4	PT0405	FLANGE BEARING-2 BOLT-1 1/2”			4
5	HW0502	BOLT-HHCS-1/2-13 X 1 1/4”			8
6	HW0110	WASHER-LOCK-1/2”			8
7	43127001	SHAFT-EQUALIZATION		BE-24-2	2
7	43327001	SHAFT-EQUALIZATION		BE-36-2	2
8	PT0503	BEARING-FLANGED LOAD-2 1/4”			8
9	HW0025	NUT-JAM-7/8-14			8

BRIDGE & CROSS BAR

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	HW0502	BOLT-HHCS-1/2-13 X 1 1/4”			12
2	HW0110	WASHER-LOCK-1/2”			20
3	HW0112	WASHER-FLAT-1/2”-SAE			20
4	HW0515	BOLT-HHCS-1/2-13 X 2”		FULLY THREADED	8
5	HW0007	NUT-HEX-1/2-13			8

LIFT CYLINDER CONNECTIONS

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	00158001-13	CHAIN-ROLLER-#80			4
2	HW0014	NUT-HEX-1-8			8
3	43897002	STUD-LIFT-INNER FRAME			4
4	PT0204	LINK-CONNECTING-#80			8
5	43897001	STUD-LIFT-OUTER FRAME			4
6	43815018	BRACKET-CYLINDER SUPPORT			4
7	SS0761	U-BOLT-CYLINDER MOUNTING			4
8	HW0108	WASHER-FLAT-3/8”-SAE			12
9	HW0107	WASHER-LOCK-3/8”			12
10	HW0005	NUT-HEX-3/8-16			8
11	HW0514	BOLT-HHCS-1/2-13 X 2 1/2”		IDLER CASTER END OF UNIT	2
11	HW0504	BOLT-HHCS-1/2-13 X 2”		DRIVE WHEEL END OF UNIT	2
12	HW0110	WASHER-LOCK-1/2”			4
13	HW0112	WASHER-FLAT-1/2”-SAE			4
14	HW0402	BOLT-HHCS-3/8-16 X 1”			4
15	43822002	CLEVIS ASSEMBLY		SOLD AS ASSEMBLY ONLY	4

GUIDANCE ARM

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	43017021	GUIDE ARM WELDMENT			2
2	43017025	SPACER-GUIDE ARM			4
3	PT0510	CAM ROLLER-1 3/4”			4
4	HW0115	WASHER-LOCK-3/4”			4
5	HW0011	NUT-HEX-3/4-16			4
6	HW0509	BOLT-HHCS-1/2-13 X 4 1/2”			4
7	HW0112	WASHER-FLAT-1/2”-SAE			4
8	HW0110	WASHER-LOCK-1/2”			4
9	HW0007	NUT-HEX-1/2-13			4

IDLER ROLLERS

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	43182001	LEAD ROLLER ASSEMBLY-24”		W/ ALIGNMENT GROOVE	4
1	43382001	LEAD ROLLER ASSEMBLY-36”		W/ ALIGNMENT GROOVE	4
2	43182002	IDLER ROLLER ASSEMBLY-24”			8
2	43382002	IDLER ROLLER ASSEMBLY-36”			8
3	43187002	SHAFT-HEX-.75” X 25.75”			8
3	43387002	SHAFT-HEX-.75” X 37.75”			8
4	43187003	SHAFT-HEX-.75” X 27.5”			4
4	43387003	SHAFT-HEX-.75” X 39.5”			4
5	HW1058	PIN-HITCH			24

POWERED ROLLERS

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	43182003	POWERED ROLLER-24”			10
1	43382003	POWERED ROLLER-36”			10
2	43087001	JOURNAL-POWERED ROLLER			10
3	PT0404	FLANGE BEARING-3-BOLT-1”			20
4	HW0321	BOLT-HHCS-5/16-18 X 1 1/4”			60
5	HW0105	WASHER-LOCK-5/16”			60
6	HW0004	NUT-HEX-5/16-18			60
7	PT0033	SPROCKET-35B18 X 1”			16
8	00197028	KEY-1/4” X 1 1/4”			8
9	00158001-38	CHAIN-ROLLER-#35		† 49 PITCH LENGTH	4
9	00158001-39	CHAIN-ROLLER-#35		51 PITCH LENGTH	4
10	PT0031	LINK-CONNECTING-#35			8
11	PT0418	COLLAR-SHAFT-1”			10
12	PT0032	LINK-OFFSET-#35		† NOT SHOWN	4

† OFFSET LINKS FOR USE WITH 49 PITCH LENGTH CHAINS ONLY.

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	HC0120	MOTOR-HYDRAULIC-160CC			2
2	HW1071	KEY-WOODRUFF-#808 STD		SUPPLIED WITH ITEM 1	A/R
3	H1544	ADAPTER-#6 JICM X #10 SAEM			4
4	HW0402	BOLT-HHCS-3/8-16 X 1”			18
5	HW0107	WASHER-LOCK-3/8”			18
6	50017005	PLATE-MOTOR MOUNTING			2
7	PT0302-1	COUPLING BODY-#40 X 1”			4
8	PT0301	CHAIN-COUPLING-#40		INCL. CONNECTING PIN	2
9	00197026	KEY-1/4” X 1”			4

HOSE CARRIER

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	PT0629	CARRIER TRACK		81 LINKS REQ’D	10’
2	PT0630	BRACKET-UPPER MOUNTING		SOLD AS SET - INCL. ITEM #5	1
3	HW0212	SCREW-RHMS-#10-24 X 1/2”			2
4	SS0202	NUT-NILN-#10-24			2
5	PT0630	BRACKET-LOWER MOUNTING		SOLD AS SET - INCL. ITEM #2	1
6	HW0301	BOLT-SELF TAP “F”-1/4-20 X 1/2”			6
7	HW0303	BOLT-HHCS-1/4-20 X 1”			2
8	HW0104	WASHER-FLAT-1/4”-SAE			2
9	HW0103	WASHER-LOCK-1/4”			2
10	HW0002	NUT-HEX-1/4-20			2
11	43817056-2	BRACKET-CARRIER TRACK MOUNTING			1
12	HW0401	BOLT-HHCS-3/8-16 X 3/4”			4
13	HW0107	WASHER-LOCK-3/8”			4
14	HW0108	WASHER-FLAT-3/8”-SAE			4
15	43817057	PLATE-CARRIER TRACK SUPPORT			1
16	HW0504	BOLT-HHCS-1/2-13 X 2”			2
17	HW0110	WASHER-LOCK-1/2”			2
18	HW0112	WASHER-FLAT-1/2”-SAE			2

CABLE RETRACTOR

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	CCR-12HD	TAKE UP REEL-CARRIER TRACK			1
2	HW0403	BOLT-HHCS-3/8-16 X 1 1/4”			2
3	HW0108	WASHER-FLAT-3/8”-SAE			4
4	HW0107	WASHER-LOCK-3/8”			2
5	HW0005	NUT-HEX-3/8-16			2

OPERATOR GATE

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	43017064-2	LATCH-SWIING GATE			1
2	HW0030	BOLT-HHCS-3/8-16 X 2 1/4”			1
3	HW0031	NUT-LOCK-3/8-16			1
4	HW9000	HINGE-SPRING			1
5	HW0301	BOLT-SELF TAP ”F”-1/4-20 X 1/2”			3
6	HW1037	STOP-GATE	80092001		1
7	HW0303	BOLT-HHCS-1/4-20 X 1”	80092001		1
8	HW0104	WASHER-FLAT-1/4”-SAE	80092001	(NOT SHOWN)	1
9	HW0003	NUT-NILN-1/4-20	80092001	(NOT SHOWN)	1

GUARDS - OUTSIDE CARRIAGE

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	53017009	GUARD-FAR END-TOP			1
2	53017010	GUARD-FAR END-MIDDLE			1
3	53017011	GUARD-FAR END-BOTTOM			1
4	HW0301	BOLT-SELF TAP “F”-1/4-20 X 1/2”			33

GUARDS - INNER CARRIAGE

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	53017015-2	DASH BOARD-OPERATOR CONSOLE			1
2	53017013-2	GUARD-FRONT-OPERATOR CONSOLE			1
3	53017012-2	GUARD-INNER-FRAME			2
4	50017010-2	GUARD-LINEAR DRIVE SCREW			1
5	50017011-2	GUARD-SIDE-ARM CARRIER SHAFT			2
6	53017014	KICK PLATE-OPERATOR CONSOLE			1
7	HW0301	BOLT-SELF TAP “F”-1/4-20 X 1/2”			48
8	HW0306	BOLT-FHSCS-1/4-20 X 1”			4
9	HW0104	WASHER-FLAT-1/4”-SAE			4
10	HW0103	WASHER-LOCK-1/4”			4
11	HW0002	NUT-HEX-1/4-20			4
12	PL0602	VINYL EDGING		6’ EA. FOR ITEM #5 - NOT SHOWN	12’
13	PL0602	VINYL EDGING		AT FOOT SWITCH - NOT SHOWN	1’

GUARDS - LIFT CYLINDER

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	43815016	GUARD-CLEVIS		OPERATOR RIGHT/FAR LEFT	2
1	43815017	GUARD-CLEVIS		OPERATOR LEFT/FAR RIGHT	2
2	HW0301	BOLT-SELF TAP “F”-1/4-20 X 1/2”			8

EXTRACTOR ARM

VACUUM STUDS

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	P0505	BUSHING-RED-#6 NPT X #4 NPTF-BRASS			2
2	P0402	HOSE BARB-1/4 X #4 NPTM-BRASS		FIXED SIDE ONLY	1
3	HW0428	STUD-VACUUM-3/8-16 X 5”	HW-KIT-2		8
4	HW0108	WASHER-FLAT-3/8”-SAE	HW-KIT-2		40
5	HW1001	SPRING-3/8”	HW-KIT-2		24
6	HW0006	NUT-NILN-3/8-16	HW-KIT-2		8

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	P0110	VACUUM CUP-12” ROUND		† SEE NOTE	2
	N/A	VACUUM CUP-10” ROUND	00162001	† AVAILABLE AS KIT ONLY	2
2	00117059	PLATE-VACUUM CUP ADAPTER	00162001		2
3	HW0328	BOLT-HHCS-5/16-18 X 3/4”	00162001		8
4	P0401	ELBOW-#4 NPTM X 1/4” BARB-BRASS	00162001		2
5	P0506	ELBOW-STR-90 DEG-#4 NPT-BRASS	00162001		2
6	P0505	BUSHING-RED-#6 NPT X #4 NPTF-BRASS	00162001		2
7	00166001	CASTING-12” VACUUM CUP	00162003		2
8	00164001	SEAL-RUBBER	00162003		2
9	00165001	PLATE-FRONT	00162003		2
10	HW0311	BOLT-FHSCS-1/4-20 X 5/8”	00162003		16

† ONE-PIECE CONSTRUCTION

SWING ARMS

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	41257014	TIE PLATE-SWING ARM			1
2	43055004	SWING ARM-RHS	†	NOT SOLD INDIVIDUALLY	1
3	43055002	SWING ARM-LHS	†	NOT SOLD INDIVIDUALLY	1
4	HW0603	BOLT-FHSCS-5/8-11 X 2”			4
5	HW0113	WASHER-LOCK-5/8”			4
6	HW0010	NUT-JAM-5/8-11			4
7	PT0413	COLLAR-SHAFT-3”	80252001		2
8	43027001	SHAFT-ROTARY ACTUATOR	80252001		1
9	HW1013	KEY-3/8” X 12”	80252001		1
10	PT0419	BEARING-SAE 841-2” ID, 3” OD, 1/8” THICK	80252001		3
11	43052005	CAP-BEARING		INCLUDES BEARING	2
12	HW0303	BOLT-HHCS-1/4-20 X 1”			6
13	HW0103	WASHER-LOCK-1/4”			6
14	43057014	STANDOFF-WIRE			1
15	HW0312	SCREW-SHSS-1/4-20 X 1”-CUP POINT			1
16	H1565	ADAPTER-45 DEG-#6 JICM X #4 NPTM			4
17	H1600	ADAPTER-90 DEG-#6 JICM X #8 SAEM			2

† INCLUDED IN MULTIPLE KITS

SWING ARM STOPS

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	43055007	MOUNT-STOP-SWING ARM			2
2	43057024	STOP-SWING ARM		BE-24	4
2	43057023	STOP-SWING ARM		BE-36	4
3	HW0304	BOLT-HHCS-1/4-20 X 1 1/2”			4
4	HW0104	WASHER-FLAT-1/4”-SAE			8
5	HW0103	WASHER-LOCK-1/4”			4
6	HW0002	NUT-HEX-1/4-20			4
7	HW0403	BOLT-HHCS-3/8-16 X 1 1/4”			4
8	HW0107	WASHER-LOCK-3/8”			4
9	HW0108	WASHER-FLAT-3/8”-SAE			4

VACUUM PUMP

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	P0005	PUMP-VACUUM			1
2	P0208	FILTER-HI FLOW			3
3	P0503	NIPPLE-#4 NPT-BRASS			3
4	P0502	TEE-#4 NPTF-BRASS			1
5	P0506	ELBOW-STR-90 DEG-#4 NPT-BRASS			4
6	P0402	HOSE BARB-1/4” X #4 NPTM-BRASS			5
7	P0207	VALVE-VACUUM RELEASE			2
8	P0302	HOSE-VACUUM-1/4” ID		TWO 6” PIECES	1’
9	P0302	HOSE-VACUUM-1/4” ID		FIXED SIDE	1’
10	P0301-1	HOSE-COIL-VACUUM			1
11	E0611	JUNCTION BOX-4” X 2” X 2”			1
12	E0612	COVER-JUNCTION BOX			1
13	HW0212	SCREW-RHMS-#10-24 X 1/2”			2
14	E0624	CONNECTOR-1/2”			1
15	E0608-1	RESTRAINT-1/2”-90 DEG		GRIP SIZE .450 - .560	1
15a	E0617	LOCKNUT-CONDUIT-1/2”		NOT SHOWN	2
16	E0501	CORD-14-4 SW/SOW			15’
17	43057014	STANDOFF-CABLE			1
18	HW0206	SCREW-RHMS-#10-32 X 3/4”			4
19	HW0306	BOLT-FHSCS-1/4-20 X 1”			1
20	43057021	PLATE-STIFFENER	†		2
21	HW0402	BOLT-HHCS-3/8-16 X 1”	†		12
22	HW0107	WASHER-LOCK-3/8”	†		12
23	HW0005	NUT-HEX-3/8-16	†		12
24	HW0108	WASHER-FLAT-3/8”-SAE	†	NOT SHOWN	24
25	P0111	FILTER-VACUUM-IN LINE			2

† INCLUDED IN MULTIPLE KITS

EXTRACTOR ARM MOUNTING

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	HW0504	BOLT-HHCS-1/2-13 X 2”		† SEE NOTE	6
2	HW0112	WASHER-FLAT-1/2”-SAE			6
3	HW0110	WASHER-LOCK-1/2”			6
4	HW0007	NUT-HEX-1/2-13			6
5	41655008	EXTENSION-EXTRACTOR ARM		BE-36	A/R

† QTY 12 REQUIRED WITH EXTRACTOR ARM EXTENSION.

HOSE MOUNTING

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	41257035	STANDOFF			2
2	HW1072	RESTRAINT-HOSE			2
3	HW0104	WASHER-FLAT-1/4”-SAE			2
4	HW0103	WASHER-LOCK-1/4”			2
5	HW0318	BOLT-SHCS-1/4-20 X 1 1/2”			2
6	HW0302	BOLT-HHCS-1/4-20 X 3/4”			1
7	HW0312	SCREW-SHSS-1/4-20 X 1”-CUP POINT			1

ARM CYLINDER

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	50055002	ARM-EXTENSION			1
2	HC0416	CYLINDER-EXTENED REACH			1
3	H1578	ADAPTER-90 DEG-#6 JICM X #6 NPTM			2
4	41257031	PIN-CLEVIS END			1
5	00197036	PIN-ROD END			1
6	HW1058	PIN-HITCH			4

BEARING PLATES

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	50055001	HOUSING-EXTENDED REACH			1
2	50057008	PLATE-END			1
3	HW0303	BOLT-HHCS-1/4-20 X 1”			4
4	HW0104	WASHER-FLAT-1/4”-SAE			8
5	HW0103	WASHER-LOCK-1/4”			4
6	HW0002	NUT-HEX-1/4-20			24
7	50058003	PLATE-BEARING		SIDE	2
8	50058006	PLATE-SHIM		SIDE	2
9	50058004	PLATE-BEARING		UPPER/ LOWER	2
10	50058005	PLATE-SHIM		UPPER/ LOWER	2
11	HW0812	SCREW-SHSS-1/4-20 X 5/8”-HALF DOG			20

ROTARY ACTUATOR

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	43046001	ROTARY ACTUATOR			1
2	80000002	ROTARY ACTUATOR BASE ASSEMBLY		WITHOUT ACTUATOR	1
2A	N/A	VERTICAL CARRIER PLATE-OUTER		INCL. WITH 80000002	2
2B	N/A	VERTICAL CARRIER PLATE-INNER		INCL. WITH 80000002	1
2C	N/A	CARRIER BASE PLATE		INCL. WITH 80000002	1
3	HW1070	PIN-PULL DOWEL-5/8” X 1 1/2”			2
4	HW0508	BOLT-SHCS-1/2-13 X 3/4”			3
5	HW1045	PIN-PULL DOWEL-3/8” X 1 1/2”		INCL. WITH 80000002	6
6	HW0412	BOLT-SHCS-3/8-16 X 1 1/4”		INCL. WITH 80000002	12
7	H0010	FITTING-BULKHEAD-3/4-16 X #4 NPTF			4
8	H1579	ADAPTER-90 DEG-#6 JICM X #4 NPTM			4

CARRIER SHAFTS

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	50057001	CARRIER SHAFT-EXTRACTOR ARM		3” DIA.	2
2	43054007	BEARING-EXTRACTOR ARM CARRIER	80252002		4
3	HW0412	BOLT-SHCS-3/8-16 X 1 1/4”	80252002		16
4	PT0413	COLLAR-SHAFT-3”			4
5	50057009	PLATE-END			4
6	50057010	SHIM-END PLATE			A/R
7	HW1076	BOLT-FHSCS-3/8-16 X 1”			12
	PT0624	FITTING-ZERK	80252002	NOT SHOWN	4

DRIVE NUT ASSEMBLY

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	43054006	DRIVE NUT ASSEMBLY	80252003		1
2	HW0426	BOLT-SHCS-3/8-16 X 5 1/2”	80252003	† SEE NOTES	4
3	HW0108	WASHER-FLAT-3/8”-SAE	80252003	† SEE NOTES	4
4	HW0006	NUT-NILN-3/8-16	80252003	† SEE NOTES	4
5	PT0624	FITTING-ZERK	80252003		1
6	43017009-2	BRACKET-SCREW GUARD MOUNTING			2
7	HW0303	BOLT-HHCS-1/4-20 X 1”			4
8	HW0103	WASHER-LOCK-1/4”			4
9	HW0104	WASHER-FLAT-1/4”-SAE			4

† IT IS RECOMMENDED TO REPLACE MOUNTING HARDWARE WHEN REPLACING DRIVE NUT ASSEMBLY

DRIVE SCREW

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	50024001	SCREW-LINEAR DRIVE			1
2	PT0119	SPROCKET-50B15 X 1 3/16”			1
3	43097004	KEY-1/4” X 7/8”			1
4	00158001-15	CHAIN-ROLLER-#50			1
5	PT0102	LINK-CONNECTING-#50			1
6	PT0406	FLANGE BEARING-4 BOLT-1 3/16”		ALLOY CASTING	2
7	HW0503	BOLT-HHCS-1/2-13 X 1 1/2”			8
8	HW0110	WASHER-LOCK-1/2”			8
9	PT0107	SPROCKET-50B15 X 1”			1
10	HC0121	MOTOR-HYDRAULIC-100CC		SAE 2-BOLT MOUNT	1
11	H1605	ADAPTER-90 DEG-#6 JICM X #10 SAEM			2
12	HW1071	KEY-WOODRUFF-#808 STD		SUPPLIED WITH ITEM 10	A/R
13	HW0403	BOLT-HHCS-3/8-16 X 1 1/4”			6
14	HW0107	WASHER-LOCK-3/8”			6
15	43017007	PLATE-MOUNTING-SCREW DRIVE MOTOR			1
16	43057019	PLATE-COVER			2
17	HW0415	BOLT-SHCS-3/8-16 X 3/4”			8

HOSE CARRIER PLATE

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	41696001	BRACKET-MOVABLE END			1
2	HW0306	BOLT-FHSCS-1/4-20 X 1”			4
3	HW0104	WASHER-FLAT-1/4”-SAE			10
4	HW0103	WASHER-LOCK-1/4”			6
5	HW0002	NUT-HEX-1/4-20			6
6	PT0627	HOSE CARRIER		12 LINKS REQD.	34”
7	PT0628	BRACKET-FIXED END			1
8	HC0262	VALVE-CROSS PORT RELIEF			1
8a	HC0236	REPLACEMENT CARTRIDGE		† FOR ITEM 8 (NOT SHOWN)	2
9	HW0308	BOLT-HHCS-1/4-20 X 2 1/2”			2
10	H1546	ADAPTER-#6 JICM X #8 SAEM			2
11	H1617	ADAPTER-45 DEG-#6 JICM X #8 SAEM			2
12	HC0237	VALVE-SEQUENCING			1
13	HW0317	BOLT-HHCS-1/4-20 X 3 1/2”			2
14	H1560	ADAPTER-45 DEG-#8 JICM X #8 SAEM			4
15	H1600	ADAPTER-90 DEG-#6 JICM X #8 SAEM			2
16	50017006	PLATE-HOSE CARRIER			1
17	HW0403	BOLT-HHCS-3/8-16 X 1 1/4”			4
18	HW0108	WASHER-FLAT-3/8”-SAE			8
19	HW0107	WASHER-LOCK-3/8”			4
20	HW0005	NUT-HEX-3/8-16			4

† CARTRIDGES ARE FOR REPLACEMENT ONLY

DRIVE AND IDLER CASTERS

FLOOR DRIVE ASSEMBLY

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
REF	43822004	FLOOR DRIVE ASSEMBLY			2
1	43825001	FRAME-FLOOR DRIVE			2
2	C0510	WHEEL-10” X 5”-POLY	80322001		2
3	PT0430	FLANGE BEARING-4 BOLT-1 1/2”	80322001		4
4	HW0504	BOLT-HHCS-1/2-13 X 2”			8
5	HW0112	WASHER-FLAT-1/2”-SAE			16
6	HW0110	WASHER-LOCK-1/2”			16
7	HW0007	NUT-HEX-1/2-13			16
8	HW0516	BOLT-HHCS-1/2-13 X 6 1/2”			8
9	43827006	SPACER-DRIVE WHEEL		MUST BE ORDERED AS SET OF 4	8
10	43827004	PLATE-MOTOR MOUNTING			2
11	43822003	SHAFT-WHEEL	80322001	INCL. COUPLING BODY	2
12	43897004	KEY-3/8” X 4 3/4”	80322001		2
13	PT0321	CHAIN-COUPLING-#50		INCL. CONNECTING PIN	2
14	43726004	COUPLING BODY-TAPER BORE-#50			2
15	43726002	BUSHING-TAPER LOCK-1”			2
16	HW0323	BOLT-HHCS-5/16-18 X 1”			8
17	HC0126	MOTOR-HYDRAULIC-400CC			2
18	HW1071	KEY-WOODRUFF-#808 STD		INCL. WITH ITEM 17	A/R
19	HW0416	BOLT-SHCS-3/8-16 X 1”			8
20	HW0107	WASHER-LOCK-3/8”			8
21	H1612	ADAPTER-90 DEG-#8 JICM X #10 SAEM			4

CASTERS

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	C0500	CASTER-RIDGID-10” X 5”-POLY			2
2	HW0504	BOLT-HHCS-1/2-13 X 2”			6
3	HW0514	BOLT-HHCS-1/2-13 X 2 1/2”			2
4	HW0112	WASHER-FLAT-1/2”-SAE			16
5	HW0110	WASHER-LOCK-1/2”			8
6	HW0007	NUT-HEX-1/2-13			8

ELECTRICAL

AC POWER STANCHION

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	N/A	STANCHION-POWER		CONSULT FACTORY	1
2	HW0511	BOLT-HHCS-1/2-13 X 3 3/4”			2
3	HW0112	WASHER-FLAT-1/2”-SAE			2
4	HW0110	WASHER-LOCK-1/2”			2
5	HW0007	NUT-HEX-1/2-13			2
6	46837014-2	TOW ARM-COLLECTOR TROLLEY			1
7	46838015	SPACER BLOCK-TOW ARM			1
8	HW1030	U-BOLT-3/8-16 X 2” X 5”		SQUARE BEND	1
9	HW0108	WASHER-FLAT-3/8”-SAE			2
10	HW0107	WASHER-LOCK-3/8”			2
11	HW0005	NUT-HEX-3/8-16			2
12	E0632	RESTRAINT-3/4”		GRIP RANGE .625” TO .750”	1
13	E0618	LOCKNUT-CONDUIT-3/4”			1

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	N/A	STANCHION-POWER		CONSULT FACTORY	1
2	HW1030	U-BOLT-3/8-16 X 2” X 5”		SQUARE BEND	1
3	HW0108	WASHER-FLAT-3/8”-SAE			2
4	HW0107	WASHER-LOCK-3/8”			2
5	HW0005	NUT-HEX-3/8-16”			2
6	41237056-2	BRACKET-TOW ARM			1
7	46838015	SPACER BLOCK-TOW ARM			1
8	BD0030	TOW ARM-TROLLEY			1
9	HW0323	BOLT-HHCS-5/16-18 X 1”			2
10	HW0106	WASHER-FLAT-5/16”-SAE			2
11	HW0150	WASHER-FLAT-5/16”-FENDER			2
12	HW0105	WASHER-LOCK-5/16”			2
13	HW0004	NUT-HEX-5/16-18			2
14	HW0511	BOLT-HHCS-1/2-13 X 3 3/4”		MOUNTING HARDWARE (NOT SHOWN)	2
15	HW0112	WASHER-FLAT-1/2”-SAE			2
16	HW0110	WASHER-LOCK-1/2”			2
17	HW0007	NUT-HEX-1/2-13			2

CONTROL PANEL

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	E0638	ENCLOSURE-CONTROL PANEL		16” X 14” X 6”	1
2	HW0303	BOLT-HHCS-1/4-20 X 1”			4
3	HW0103	WASHER-LOCK-1/4”			4
4	HW0002	NUT-HEX1/4-20			4
5	E0616	RESTRAINT-1/2”		GRIP RANGE .250” TO .375”	1
6	E0632	RESTRAINT-3/4”		GRIP RANGE .625” TO .750”	2
7	E0613	RESTRAINT-3/4”		GRIP RANGE .500” TO .625”	2
8	E0617	LOCKNUT-CONDUIT-1/2”		NOT SHOWN	1
9	E0618	LOCKNUT-CONDUIT-3/4”		NOT SHOWN	4

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	E0640	PANEL-COMPONENT MOUNTING		NO HOLES DRILLED	1
2	E0120	MAGNETIC STARTER-NEMA 1 3/4”		WITH OVERLOAD	1
3	HW0130	SCREW-RHMS-#8-32 X 1/2”			17
4	HW0133	WASHER-FLAT-#8-SAE			17
5	HW0132	NUT-NILN-#8-32		NOT SHOWN	17
6	E0207-1	TRANSFORMER		0.75 Kva	1
7	HW0104	WASHER-FLAT-1/4”-SAE			4
8	HW0003	NUT-NILN-1/4-20			4
9	HW0302	BOLT-HHCS-1/4-20 X 3/4”		NOT SHOWN	4
10	E1023	WIRE WAY			5 3/8”
11	E1023	WIRE WAY			5 3/4”
12	E1023	WIRE WAY			4 3/8”
13	E1023	WIRE WAY			11 3/4”
14	E1024	TRACK-TERMINAL BLOCK			5 7/8”
15	E1024	TRACK-TERMINAL BLOCK			4 5/8”
16	E1020	TERMINAL BLOCK			16
17	E1040	END BARRIER			2
18	E1330	END ANCHOR			4
19	E0341	GROUND LUG			1
20	E0902	FUSE		FLM6	1

OPERATOR CONSOLE

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	E0327	KEYED ACTUATOR ASSEMBLY		INCL. 2 KEYS & CONTACT BLOCK	1
2	E0351	KEY-REPLACEMENT		SET OF 2 KEYS	A/R
3	E0309	HOUR METER		INCL. MOUNTING HARDWARE	1
4	E0315	SWITCH-SELECTOR-3 POSITION	80232001	ON-OFF-ON	1
5	E0812	LEGEND PLATE-VACUUM			1
6	E1006	CONTACT BLOCK-N/O	80232001		2
7	E1007	CONTACT BLOCK-N/C	80232001		2

FOOT SWITCH

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	E0301-1	SWITCH-FOOT OPERATED		† SEE NOTES	1
2	HC0303	BOLT-HHCS-1/4-20 X 1”		IF EQUIPPED	2
3	HC0103	WASHER-1/4”-LOCK		IF EQUIPPED	2

GATE SWITCH

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	YE0305	SWITCH-ROLLER			1
2	SS0303	WASHER-FLAT-#8			2
3	SS0111	SCREW-SHCS-#8-32 X 1 1/2”			2
4	SS0203	NUT-NILN-#8-32			2
5	E0616	RESTRAINT-1/2”		GRIP SIZE .250” TO .375”	1

PROXIMITY SWITCH

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	E0314	SENSOR-PROXIMITY-30MM			1
2	43017027-2	BRACKET-PROXIMITY SENSOR			1
3	HW0306	BOLT-FHSCS-1/4-20 X 1”			2
4	HW0103	WASHER-LOCK-1/4”			2
5	HW0002	NUT-HEX-1/4-20			2
6	43017037-2	ANGLE-PROXIMITY SENSOR TARGET			1
7	HW0311	BOLT-FHSCS-1/4-20 X 5/8”			2

JUNCTION BOX

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	E1342	ENCLOSURE-6” X 6” X 4”		NO HOLES DRILLED	1
2	E0622	RESTRAINT-1/2”		GRIP SIZE .450” TO .500”	1
3	E0608-1	RESTRAINT-1/2”-90 DEG		GRIP SIZE .450” TO .500”	2
4	E0623	RESTRAINT-1/2”-90 DEG		GRIP SIZE .250” TO .375”	2
5	E0616	RESTRAINT-1/2”		GRIP SIZE .250” TO .375”	1
6	HW0301	BOLT-SELF TAP “F”-1/4-20 X 1/2”			4
7	E0617	LOCKNUT-CONDUIT-1/2”		NOT SHOWN	6

JUNCTION BOX PANEL

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	E0639	PANEL-COMPONENT MOUNTING		WITHOUT HOLES	1
2	E1024	TRACK-TERMINAL BLOCK		4 7/8”	1
3	E1020	TERMINAL BLOCK			9
4	E1330	END ANCHOR			2
5	E1040	END BARRIER			1
6	E0341	GROUND LUG			1
7	HW0130	SCREW-RHMS-#8-32 X 1/2”		2 FOR TRACK MOUNTING	3
8	HW0132	NUT-NILN-#8-32		2 FOR TRACK MOUNTING	3
9	HW0133	WASHER-FLAT-#8-SAE		2 FOR TRACK MOUNTING	3

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	E0611	JUNCTION BOX-4” X 2” X 2”			3
2	E0612	COVER-JUNCTION BOX			3
3	E0622	RESTRAINT-1/2”		GRIP SIZE .450” TO .500”	5
4	E0617	LOCKNUT-CONDUIT-1/2”			5
5	E0632	RESTRAINT-3/4”		GRIP SIZE .625” TO .750”	1
6	E0618	LOCKNUT-CONDUIT-3/4”			1
7	HW0301	BOLT-SELF TAP “F”-1/4-20 X 1/2”			6

WIRING DIAGRAMS

HYDRAULICS

POWER UNITS

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	E0011	MOTOR-ELECTRIC-10HP			1
2	HC0326	ADAPTER-PUMP TO MOTOR			1
3	HC0325	PUMP-16 GPM-VARIABLE DISP.-VANE TYPE			1
4	HC0327	COUPLING BODY-1 3/8”		MOTOR END	1
5	HC0329	SPIDER-COUPLING INSERT			1
6	HC0328	COUPLING BODY-7/8”		PUMP END	1
7	HW0502	BOLT-HHCS-1/2-13 X 1 1/4”			2
8	HW0110	WASHER-LOCK-1/2”			2
9	HW0112	WASHER-FLAT-1/2”-SAE			2
10	H1606	ADAPTER-90 DEG-#8 JICM X #8 SAEM			1
11	H1549	ADAPTER-#20 JICM X #24 SAEM			1
12	H1595	ADAPTER-90 DEG-#20 JICM X #20 JICSW			1
13	H1609	ADAPTER-90 DEG-#12 JICM X #16 SAEM			1
14	H1522	ADAPTER-#12 JICSW X #12 SAEM			1
15	HC0260	VALVE-MAIN SYSTEM RELIEF			1
15a	HC0236	REPLACEMENT CARTRIGE		† FOR ITEM 15 (NOT SHOWN)	A/R
16	HC0318	GAUGE-PRESSURE			1
17	H0206	PLUG-#4 NPT			1
18	H1547	ADAPTER-#8 JICM X #10 SAEM			1
19	H1522	ADAPTER-#12 JICSW X #12 SAEM			1
20	H1542	ADAPTER-#12 JICM X #12 SAEM			1
21	HC0280	VALVE-CHECK			1
22	H1542	ADAPTER-#12 JICM X #12 SAEM			1
23	E0613	RESTRAINT-3/4”		GRIP RANGE .500” TO .625”	1
23a	E0618	LOCKNUT-CONDUIT-3/4”		FOR ITEM 23 - NOT SHOWN	1
24	HW0403	BOLT-HHCS-3/8-16 X 1 1/4”			4
25	HW0108	WASHER-FLAT-3/8”-SAE			8
26	HW0107	WASHER-LOCK-3/8”			4
27	HW0005	NUT-HEX-3/8-16			4

† CARTRIDGE FOR REPLACEMENT ONLY.

RESERVOIR

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	HC0330-1	TANK-VERITCAL-30 GAL		INCL. ITEMS 1 THRU 4	1
2	HC0340	GAUGE-SIGHT		W/ THERMOMETER	1
3	HC0306	STRAINER-SUCTION			1
4	HC0308	FILLER/BREATHER ASSEMBLY			1
5	H1590	ADAPTER-90 DEG-#16 JICM X #16 NPTF			1
6	BI0102	ELBOW-#12 NPTF			1
7	BI0020	NIPPLE-#12 NPT X 3			1
8	BI0301	TEE-#12 NPTF			2
9	H1502	ADAPTER-#8 JICM X #12 NPTM			1
10	BI0002	NIPPLE-CLOSE-#12 NPT			2
11	HC0307	RETURN LINE FILTER ASSEMBLY		HOUSING AND FILTER	1
12	HC0317	FILTER-RETURN LINE		REPLACEMENT FILTER	1
13	H1509	ADAPTER-#10 JICM X #12 NPTM			2
14	HW0402	BOLT-HHCS-3/8-16 X 1”			4
15	HW0108	WASHER-FLAT-3/8”-SAE			8
16	HW0107	WASHER-LOCK-3/8”			4
17	HW0005	NUT-HEX-3/8-16			4

VALVE ASSEMBLY

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	HC0257	VALVE-LEVER			1
2	HC0252	MANIFOLD-D05-1 BANK			1
3	HW0318	BOLT-SHCS-1/4-20 X 1 1/2”			4
4	H1642	PLUG-#12 SAE			1
5	H1542	ADAPTER-#12 JICM X #12 SAEM			3
6	H1606	ADAPTER-90 DEG-#8 JICM X #8 SAEM			2
7	HW0303	BOLT-HHCS-1/4-20 X 1”			4
8	HW0104	WASHER-FLAT-1/4”-SAE			8
9	HW0103	WASHER-LOCK-1/4			4
10	HW0002	NUT-HEX-1/4-20			4
11	43817085	PLATE-ADAPTER-VALVE		† NOT SHOWN	1
12	SS0104	BOLT-SHCS-1/4-20 X 5/8”-SST		† NOT SHOWN	4
13	SS0300	WASHER-FLAT-1/4”-SAE-SST		† NOT SHOWN	4

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	HC0233	VALVE-LEVER			2
2	HC0251	MANIFOLD-D03-2 BANK			1
3	H1545	ADAPTER-#10 JICM X #10 SAEM			4
4	H1606	ADAPTER-90 DEG-#8 JICM X #8 SAEM			2
5	H1600	ADAPTER-90 DEG-#6 JICM X #8 SAEM			2
6	H1587	ADAPTER-#6 JICSW X #4 NPTM			2
7	HC0211	VALVE-ADJUSTABLE FLOW CONTROL			2
8	H1504	ADAPTER-#6 JICM X #4 NPTM			2
9	H1640	PLUG-#6 SAE			1
10	HW0301	BOLT-SELF TAP “F”-1/4-20 X 1/2”			4
11	43817033-2	RISER PLATE			1
12	HW0303	BOLT-HHCS-1/4-20 X 1”			4
13	HW0104	WASHER-FLAT-1/4”-SAE			8
14	HW0103	WASHER-LOCK-1/4”			4
15	HW0002	NUT-HEX-1/4-20			4
16	HC0233-SK	SEAL KIT		FOR ITEM 1 (NOT SHOWN)	A/R

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	HC0233	VALVE-LEVER			3
2	HC0250	MANIFOLD-D03-3 BANK			1
3	H1610	ADAPTER-90 DEG-#10 JICM X #10 SAEM			2
4	H1641	PLUG-#10 SAE			1
5	H1000	ADAPTER-#8 SAEM X #4 NPTF			4
6	H0001	NIPPLE-#4 NPT			4
7	HC0211	VALVE-ADJUSTABLE FLOW CONTROL			4
8	H1504	ADAPTER-#6 JICM X #4 NPTM			4
9	H1640	PLUG-#6 SAE			1
10	H1540	ADAPTER-#8 JICM X #8 SAEM			2
11	HW0301	BOLT-SELF TAP “F”-1/4-20 X 1/2”			4
12	43817034-2	RISER PLATE			1
13	HW0303	BOLT-HHCS-1/4-20 X 1”			4
14	HW0104	WASHER-FLAT-1/4”-SAE			8
15	HW0103	WASHER-LOCK-1/4”			4
16	HW0002	NUT-HEX-1/4-20			4
17	HC0233-SK	SEAL KIT		FOR ITEM 1 (NOT SHOWN)	A/R

LIFT CYLINDER

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	43822002	CLEVIS ASSEMBLY		SOLD AS ASSEMBLY ONLY	4
2	HW0813	SCREW-SHSS-3/8-16 X 1/2”		NYLON TIPPED	8
3	HC0420	CYLINDER-LIFT			4
4	H1606	ADAPTER-90 DEG-#8 JICM X #8 SAEM			4
5	H1107	ADAPTER-90 DEG-#8 SAEM X #8 NPTSW			4
6	HC0425	VELOCITY FUSE			4
7	HC0420-SK	SEAL KIT		NOT SHOWN	A/R

LIFT CIRCUIT

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	43017014-2	SUPPORT-PILOT DOWN MANIFOLD			1
2	43718008	STANDOFF			1
3	HW0308	BOLT-HHCS-1/4-20 X 2 1/2”			2
4	HW0303	BOLT-HHCS-1/4-20 X 1”			2
5	HW0315	BOLT-HHCS-1/4-20 X 4 1/2”			1
6	HW0104	WASHER-FLAT-1/4”-SAE			10
7	HW0103	WASHER-LOCK-1/4			5
8	HW0002	NUT-HEX-1/4-20			5

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	HC0215	VALVE-CHECK-CARTRIDGE			8
2	H1560	ADAPTER-45 DEG-#8 JICM X #8 SAEM			4
3	H1670	ADAPTER-45 DEG-#12 JICM X #10 SAEM			1
4	H1647	ADAPTER-90 DEG-#10 SAEM X #8 NPTF			1
5	H0007	NIPPLE-#8 NPT			1
6	HC0270	VALVE-ADJUSTABLE FLOW CONTROL		PRESSURE COMPENSATED	1
7	H1680	ADAPTER-#10 JICM X #8 NPTM			1
8	H1690	ADAPTER-#10 JICSW X #10 SAEM			1
9	H1612	ADAPTER-90 DEG-#8 JICM X #10 SAEM			1
10	HC0283	VALVE-COUNTER BALANCE			1
11	H1552	ADAPTER-#6 JICM X #6 SAEM			1
12	H1587	ADAPTER-#6 JICSW X #4 NPTM			1
13	H1501	ADAPTER-#8 JICM X #6 NPTM			2
14	43047002	MANIFOLD-PILOT DOWN			1
15	H1579	ADAPTER-90 DEG-#6 JICM X #4 NPTM			2

CROSS PORT RELIEF

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	HW0301	BOLT-SELF TAP “F”-1/4-20 X 1/2”			2
2	HW0308	BOLT-HHCS-1/4-20 X 2 1/2”			2
3	HW0104	WASHER-FLAT-1/4”-SAE			4
4	HW0103	WASHER-LOCK-1/4”			2
5	HW0002	NUT-HEX-1/4-20			2

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	HC0262	VALVE-CROSS PORT RELIEF			1
1a	HC0236	REPLACEMENT CARTRIDGE		† FOR ITEM 1 (NOT SHOWN)	A/R
2	H1540	ADAPTER-#8 JICM X #8 SAEM			2
3	H1521	ADAPTER-#8 JICSW X #8 SAEM			3
4	H1507	ADAPTER-#8 JICM X #8 NPTM			3
5	1A043	VALVE-ADJUSTABLE FLOW CONTROL			2
6	H1568	ADAPTER-45 DEG-#8 JICM X #8 NPTM			1
7	H1606	ADAPTER-90 DEG-#8 JICM X #8 SAEM			1
8	HC0265-1	SOLENOID-FLOOR DRIVE CUT OUT			1
9	E0611	JUNCTION BOX-4” X 2” X 2”			1
10	E0612	COVER-JUNCTION BOX			1
11	BI0001	NIPPLE-CLOSE-#8 NPT			1
12	E0617	LOCKNUT-CONDUIT-1/2”			2
13	E0616	RESTRAINT-1/2”		GRIP SIZE .250” TO .375”	1

† CARTRIDGES ARE FOR REPLACEMENT ONLY

COUNTER BALANCE VALVE

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	HC0263	VALVE-COUNTER BALANCE			1
2	H1615	ADAPTER-90 DEG-#6 JICM X #6 SAEM			2
3	H1552	ADAPTER-#6 JICM X #6 SAEM			2
4	HW0305	BOLT-HHCS-1/4-20 X 2”			2
5	HW0104	WASHER-FLAT-1/4”-SAE			4
6	HW0103	WASHER-LOCK-1/4”			2
7	HW0002	NUT-HEX-1/4-20			2

TRANSITION PLATE

ITEM	BHS PART NUMBER	DESCRIPTION	REF. KIT NO.	NOTES	NO. REQ
1	43817067-2	PLATE-TRANSITION			1
2	H0020	UNION-BULKHEAD-45 DEG-#6 JICM			8
3	H0021	NUT-BULKHEAD-#6 JIC			8
4	PL0501	GROMMET-1/2			1
5	HW0303	BOLT-HHCS-1/4-20 X 1”			2
6	HW0104	WASHER-FLAT-1/4”-SAE			4
7	HW0103	WASHER-LOCK-1/4”			2
8	HW0002	NUT-HEX-1/4-20			2

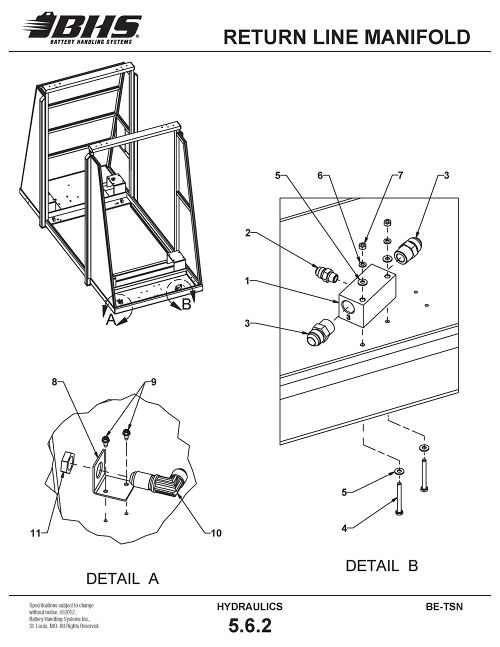

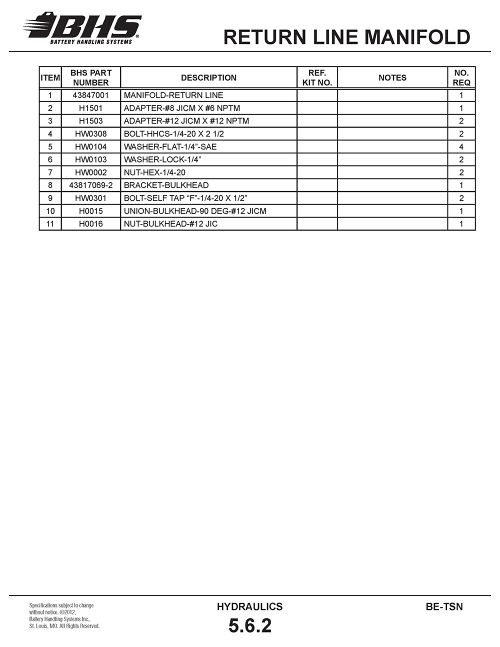

RETURN LINE MANIFOLD

HYDRAULIC SCHEMATICS

SERVICE AND MAINTENANCE

DAILY INSPECTION LIST

The points listed below should be visually inspected daily prior to initial start up of the Battery Extractor to ensure safe and proper operation of the unit and to help avoid unnecessary down time.

1. Walk around unit and inspect for any physical damage to machine not previously noted.

2. Verify all guards are in place.

3. Inspect the AC power feed for any damage.

4. Inspect vacuum cups for damage to cup sealing surface, backup casting, and vacuum hoses.

5. Inspect travel path and area around unit for any hydraulic oil that could be a potential repair/maintenance issue and/or safety hazard.

6. Check oil level in hydraulic reservoir at ﬁll level gauge.

7. Check that operator safety gate and all safety switches are in proper working order.

8. Verify extractor path is free of obstructions.

9. Check roller beds for any debris and clean as required.

10. Board unit, engage system and verify all functions are operating properly and that no abnormal or unusual noises are present.

USE FORM IF-5008 WHEN PREFORMING DAILY INSPECTIONS.

OPERATOR'S DAILY CHECKLIST

RECOMMENDED LUBRICATION INTERVALS

PREVENTATIVE MAINTENANCE REPORTS

EQ CHAIN RESETTING PROCEDURE

These instructions outline the procedures for replacing or resetting the equalization chains on single, double, and triple stack battery extractors.

Tools Required:

1 - Large standard screw driver 1 - 1/8” Allen key

1 - 5/32” Allen key 2 - 1 1/8” End wrenches

1 - 3/16” Allen key 1 - Needle nose pliers

1 - Steel ruler 1 - 80292002 EQ. adjustment stop kit

Step 1)

You will need to remove the inner and outer frame guards to access the lower studs to ease the adjustment process. The next step is to level the inner frame of the extractor using the 80292002 equalization adjustment stop kit.

NOTE: THIS PROCESS REQUIRES THE EXTRACTOR TO BE FULLY UNLOADED. BE SURE TO POSITION THE BATTERY EXTRACTOR IN A LEVEL AREA OF THE FLOOR.

Installation of the equalization adjustment stop kit requires (4) persons plus a trained battery extractor operator to raise and lower the extractor from the operator platform.

First, have the operator raise the extractor approximately 30” from the fully lowered position. Next, have (4) persons install a service stop in each corner of the roller beds as shown in the following photos.

Be sure that the word “UP” and the etched arrow are pointing toward the top of the machine.

Once all four stops have been installed as shown, have the operator slowly lower the platform until the roller bed is ﬁrmly seated against all (4) stops.

BE SURE ALL STOPS ARE CORRECTLY SEATED AS SHOWN HERE

Step 2) If you are replacing or adjusting existing EQ chains at this point you will need to remove the hex nuts and lock washers from the upper EQ chain studs and lower the chains. Retain the hex nuts and lock washers for reassembly. Remove and discard the master links from the upper and lower EQ chain studs and remove the chain from the studs.

NOTE: If the equalization chains are being reset due to a master link failure, it is recommended that the stud where the master link failed be replaced at this time.

Step 3) Thread the lower EQ chain studs into the frame until they are ﬂush with the bottom of the frame then turn an additional one half turn with the holes aligned front to back. (See ﬁgure 2)

FIGURE 2

Step 4) Attach the # 60 EQ chains to the upper and lower studs using the new #60 master links and lay chains in the frame until all 4 chains are reattached. Be sure the hex nut is threaded down near the master link. (See Figure 3)

FIGURE 3

Step 5) Align the EQ shafts so that the key stocks are in the 2 o’clock position. This will bring the set screws on the sprockets to the top of the sprocket when the inner frame is lowered. (See Figure 4)

FIGURE 4

Starting with the inside #60 EQ chain, route the chain over the sprocket directly above the lower EQ chain stud and then under the inside sprocket on the opposite EQ shaft. (See Figures 4 & 5) Be sure to take out as much slack as possible between the sprockets. Then attach the upper EQ Chain Stud to the top cross bar. (See Figure 6)

FIGURE 5

FIGURE 6

Next route the outer chain over the outer EQ sprocket and under the outer sprocket on the opposite EQ shaft and attach the upper stud to the top cross bar. Repeat this process for the opposite side of the extractor. Do not tighten the upper EQ stud adjusting nuts at this time. Be sure a lock washer is installed between the top cross bar and lower hex nut. (See ﬁgure 6)

Adjust the lower stud up or down to take the slack out of the equalization chain between the lower stud and the sprocket. It will probably be necessary to use a large standard screwdriver to get the ﬁ nal chain over the sprocket. NOTE: It is recommended that the operator end is done ﬁ rst since it has more obstacles hindering complete and easy access.

Step 6) Once all the chains have been installed you should now tighten the upper hex nuts on the upper studs until it takes about 10 pounds of force to produce ¼” deﬂection in the middle of the vertical section of the EQ chain. Tighten the lower hex nut on the upper cross bar studs to lock the studs in position.

Step 7)

Using a steel ruler measure the distance of the chain at the lower stud to the inside frame and set the distance of the corresponding sprocket to that distance. (See ﬁgures 7 and 8) Repeat this process for the remaining 3 sprockets. Raise and lower the inner frame several times and listen for any chain popping noise to conﬁrm the sprockets are in line with the lower studs. If there is no popping noise then tighten the set screws on the sprockets and slide the clamp collars against the outside sprocket and tighten the clamp collars.

FIGURE 7

FIGURE 8

SERVICE STAND INSTALLATION

TROUBLE SHOOTING GUIDE

TECH BULLETINS

PARTS KITS

STATEMENT OF WARRANTY

Statement of Warranty

Battery Handling Systems, Inc. and its subsidiaries and affiliates (collectively “BHS”) warrants to the original purchaser of its equipment, that the equipment shall be free from defects in material and workmanship under normal and proper use, operation, and maintenance during the applicable warranty period set forth below for the product containing the alleged defect:

Thirteen (13) months from the date of shipment to the original purchaser with respect to frames, weldments, electric drives, motors (except brushes), motor driven pumps, valves, and drive wheel assemblies (except wheels) only.
Ninety (90) days from the date of shipment to the original purchaser with respect to all other parts not covered above.
Bulbs, fuses, and filters are not included in this ninety (90) day warranty, unless found to be defective prior to use or within (90) days of shipment to the original purchaser, whichever occurs first.
BHS’s warranty obligations hereunder are contingent upon the following conditions: (1) BHS or its authorized dealer is promptly (but in no event later than thirty (30) days following the discovery of the claimed defect) notified of the defect; (2) the purchaser establishes to BHS’s reasonable satisfaction that any goods have been properly installed, maintained, and operated; (3) the purchaser returns the defective goods or any part thereof to BHS; and (4) the purchaser complies with all other warranty procedures required by BHS (such procedures are available upon request). Upon a determination by BHS that a product is defective within the above-mentioned warranty period(s), BHS may, at its exclusive option, either provide parts and labor to repair or replace said defective equipment, or grant a credit or refund of the purchase price of the defective equipment. Repaired or replacement equipment and parts will carry the foregoing warranty for the remainder of the original warranty period or ninety (90) days from the date of shipment of the repaired/replaced equipment, whichever is longer.

BHS will cover normal ground freight charges such as ground UPS, common carrier, etc. for the delivery of repaired or replaced equipment or parts covered by this warranty. The cost of any express delivery, if requested, will be the sole responsibility of the purchaser, and the purchaser agrees to provide its account number with its preferred carrier to BHS or to pay the entire cost of express delivery as a condition of BHS’s provision of such express delivery. Unless expressly authorized in writing by BHS, the foregoing warranty does not cover the cost of removal or reinstallation of equipment (or the cost of other activities ancillary thereto), the cost of which will be borne solely by the purchaser.

This warranty is void in the case of abuse, misuse, abnormal use, accidents, overloading, improper installation, repair, or maintenance (other than by BHS), modification of products, application of products not in accordance with the instruction manual and product application bulletins, or any other reason BHS determines that said product is not operating properly as a result of causes other than defective manufacture.

This warranty shall apply exclusively to products sold to the purchaser by BHS. BHS shall not have any liability or obligation to the purchaser, under this warranty or other- wise, with respect to any defect or failure of performance in products which are not sold or manufactured by BHS, including any such products which are commingled with or incorporated into any BHS products, or any products into which BHS products are incorporated as a system component or otherwise without the prior written approval of BHS. This warranty does not cover accessories and attachments not manufactured by BHS. The original manufacturer’s warranty, if any, for such accessories or attachments takes precedence and all claims shall be directed to their respective manufacturers.

ANY LITIGATION TO ENFORCE THE FOREGOING WARRANTY MUST BE COMMENCED NO LATER THAN ONE (1) YEAR AFTER DISCOVERY REASONABLY SHOULD HAVE BEEN MADE OF ANY FACTS OR OTHER INFORMATION SUGGESTING THE EXISTENCE OF A PRODUCT FAILURE OR A PRODUCT DEFECT. THE WARRANTY SET FORTH HEREIN IS THE COMPLETE AND ENTIRE WARRANTY MADE BY BHS AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MER- CHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NON-INFRINGEMENT, OR OTHERWISE, ARE HEREBY EXPRESSLY EXCLUDED. NO PERSON IS AUTHORIZED TO MAKE ANY OTHER OR ADDITIONAL WARRANTY ON BEHALF OF BHS. THE RIGHT TO REPAIR, REPLACEMENT, OR CREDIT/REFUND, AS SET FORTH HEREIN, IS THE SOLE AND EXCLUSIVE REMEDY FOR BREACH OF THE ABOVE WARRANTY. BHS SHALL NOT BE LIABLE FOR CHARGES OR EXPENSES OF ANY NATURE UNDER THE FOREGOING WARRANTY INCURRED WITHOUT BHS’S CONSENT. FURTHER, UNDER NO CIRCUMSTANCES, REGARDLESS OF THE FORM OF THE CLAIM OR CAUSE OF ACTION (WHETHER IN WARRANTY, CONTRACT, INFRINGEMENT, NEGLIGENCE, STRICT LIABILITY, OR FOR ANY OTHER TORT OR CLAIM), SHALL BHS BE LIABLE TO THE PURCHASER OR ANYONE ELSE FOR ANY: (A) INCIDENTAL DAMAGES (EXCEPT AS SPECIFICALLY PROVIDED FOR ABOVE), OR CONSEQUENTIAL, INDIRECT, SPECIAL OR PUNITIVE DAMAGES RELATIVE TO OR ARISING FROM OR CAUSED DIRECTLY OR INDIRECTLY BY SAID PRODUCTS OR THE USE THEREOF OR ANY DEFICIENCY, DEFECT, OR INADEQUACY OF SAID PRODUCTS; OR (B) DIRECT DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE BHS EQUIPMENT GIVING RISE TO THE CLAIM OR CAUSE OF ACTION, OR AT THE ELECTION OF BHS, THE RESTORATION OR REPLACEMENT OR REPAIR OF SUCH EQUIPMENT. “CONSEQUENTIAL DAMAGES” INCLUDE, WITHOUT LIMITATION, LOST PROFITS, BUSINESS INTERRUPTION DAMAGES, LOSS OF USE DAMAGES, AND DAMAGE TO REPUTATION OR GOODWILL. This Warranty is governed by and construed in accordance with the laws of the State of Missouri, without regard to conflict of law principles. All disputes or controversies arising out of or in connection with this Warranty shall be subject to the exclusive jurisdiction of the U.S. District Court for the Eastern District of the State of Missouri and any and all process in connection with any litigation arising out of such dispute or controversy may be served by registered, certified mail, return receipt requested, outside Missouri, with the same force and effect as if service had been made in Missouri.

If part of this Warranty is held to be invalid or unenforceable, such invalidity or unenforceability shall not invalidate or render unenforceable the entire Warranty, but rather the Warranty shall be construed as if not containing the particular invalid or unenforceable provision.

WARRANTY PROCEDURES

Warranty Procedures

Please refer to Battery Handling Systems, Inc.'s Statement of Warranty and Liability (which is set forth on the reverse side hereof or available upon request) for a complete description of BHS' warranty. In the event of conflict between BHS' warranty and these procedures, the warranty will control.

Battery Handling Systems, Inc.'s warranty policy is intended to protect original purchasers who submit valid claims, as well as to identify and eliminate claims where product failure is the result of customer abuse, neglect or misapplication.

Step 1: Gather Information

The following information must be provided immediately.

A description of the product that includes, at a minimum, the model, serial number, and hour meter reading (if applicable).
Customer name, location, and contact information including phone number.
Installation date, installation provider (dealer), servicing dealer, and selling dealer.
Any prior repairs, modification, or adjustments.

Step 2: Contact BHS

Contact BHS at:

Phone: 1.877.247.4968
Fax: 1.314.423.5948
Email: service@bhs1.com

Step 3: Authorization

BHS will authorize further evaluation, repair, or replacement. A warranty claim form indicating BHS prior authorization for any such action will be issued to claimant. The completed warranty claim form must be submitted with any request for warranty credit.

Step 4: Request RGA Number

Suspected defective parts must be returned to BHS under an issued Return Goods Authorization (RGA) number.
BHS will specify the proper disposition of the parts through the issue of an RGA number.
Return shipment method will also be specified at time of RGA issue. RGAs are good for thirty (30) days from date issued; no credit will be issued for items returned after the RGA has expired.

Step 5: Claim Warranty

Submit Warranty Claim forms and supporting documents to: Battery Handling Systems, Inc.
P.O. Box 28990
St. Louis, MO 63132
Fax: 1.314.423.5948
Email: service@bhs1.com
Labor allowance hours are determined by our engineering staff.
Actual travel time, labor time, and parts costs must be indicated as separate items as provided on the form.

Step 6: BHS will process warranty claim and notify purchaser of final disposition.
