File:IOP-400 BE-SL&DS (10-23) BE-DS with Heat Exchanger Hydraulic Schematic.png

Size of this preview: 800 × 508 pixels. Other resolution: 1,159 × 736 pixels.

Original file ‎(1,159 × 736 pixels, file size: 70 KB, MIME type: image/png)

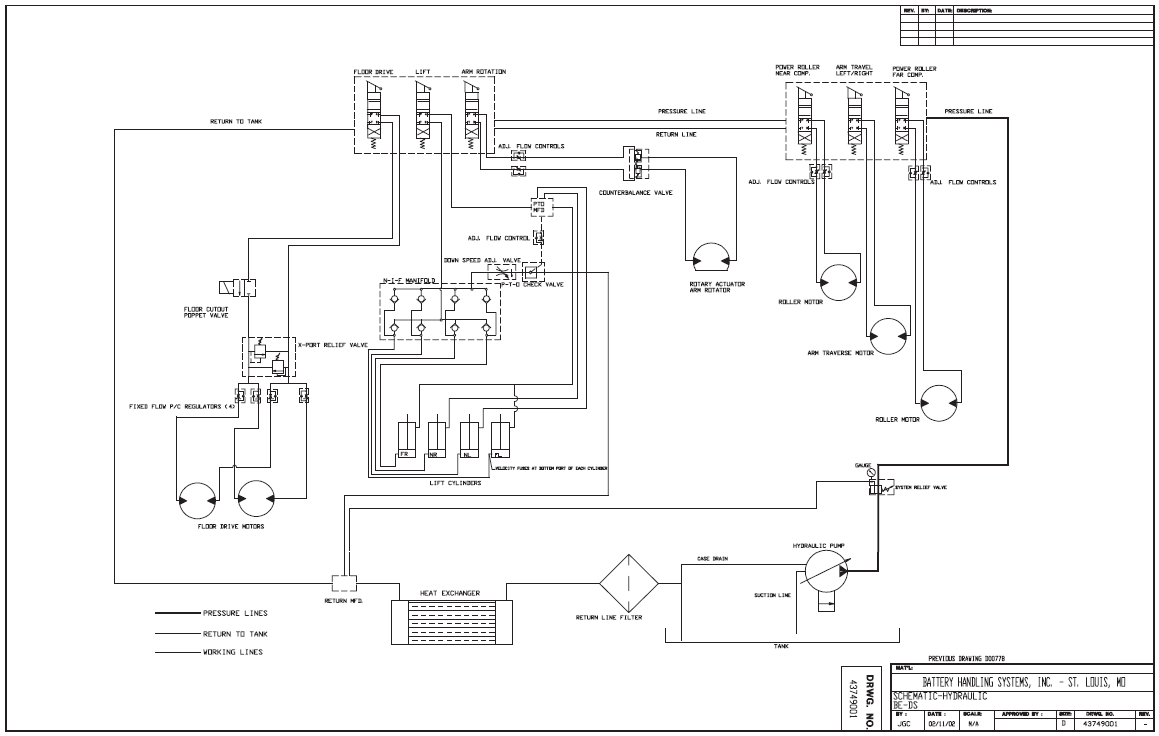

BE-DS with Heat Exchanger Hydraulics Schematic
