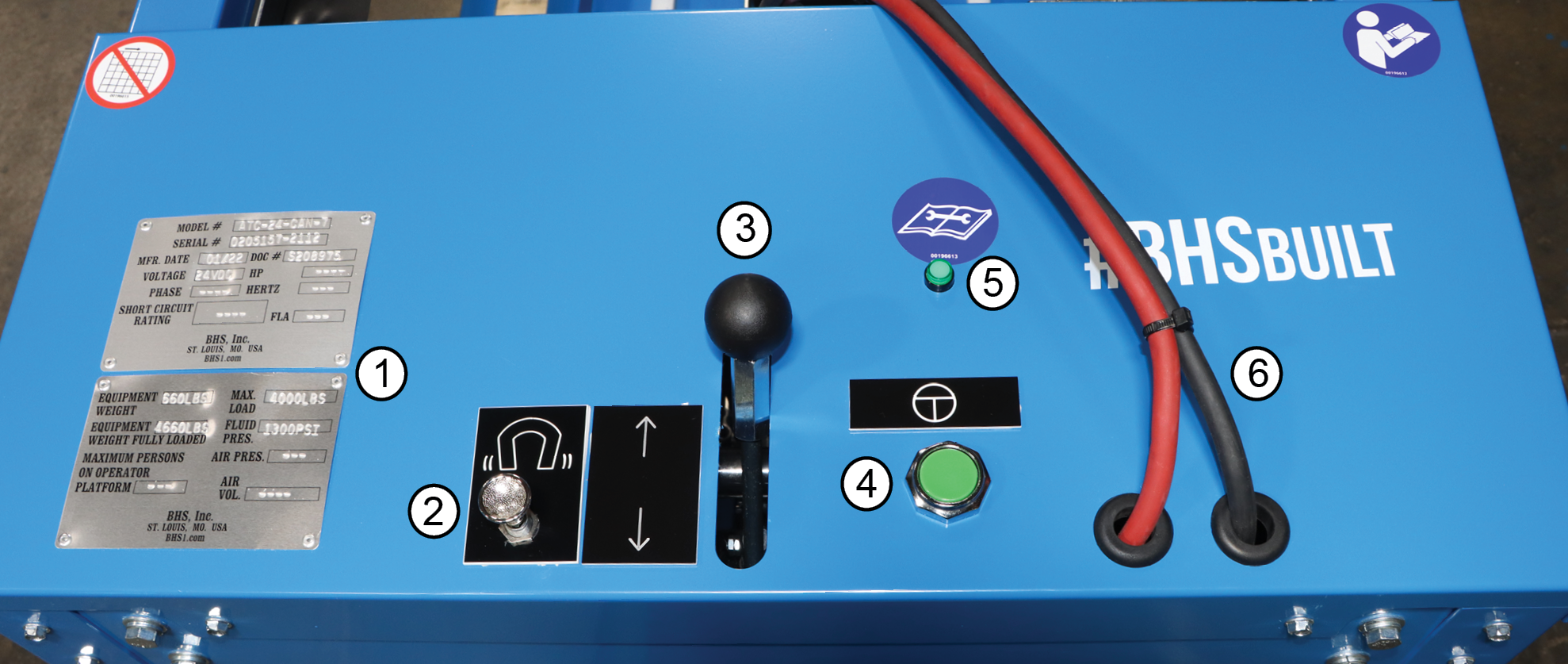

File:IOP-080 (10-23) ATC Operating Controls.png
Jump to navigation
Jump to search
Size of this preview: 800 × 339 pixels. Other resolution: 1,978 × 837 pixels.
Original file (1,978 × 837 pixels, file size: 1.74 MB, MIME type: image/png)
| 1. Serial Number & Data Tag | Lists model number, serial number and specifications of unit. |
| 2. Vacuum/Magnet "On/Off' Switch | Turns Vacuum or Magnet (if equipped) on and off. |
| 3. Extractor Arm Control Handle | Controls extractor arm movement in and out of battery compartment. |
| 4. Power Push & Hold Button | Energizes main hydraulic power unit to move extractor arm in and out. |
| 5. "Ready" Status Indicator Light | Indicates the unit is in a "Ready to Use" status when lit (See "Service and Maintenance" section if light is not lit.) |
| 6. D.C. Input Power Cables | Main power cables to be connected to host pallet truck battery to supply power to unit. |
